The original hammer saw!
Stats
- Weight: 30 lbs (Featherweight)
- Weapon: 9″ overhead “hammer saw”, 2.5lbs, AR600 steel disk, 12k RPM

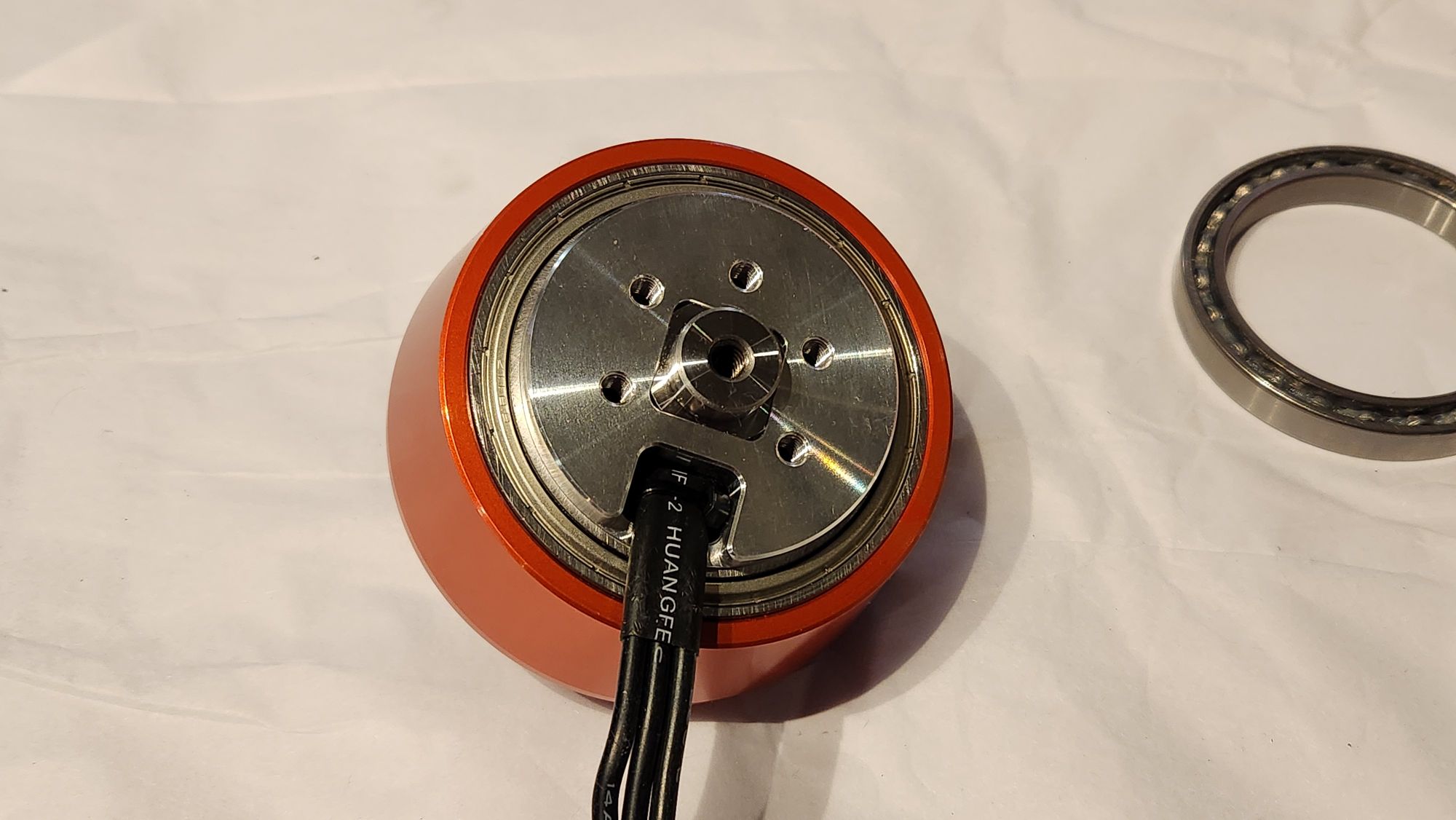

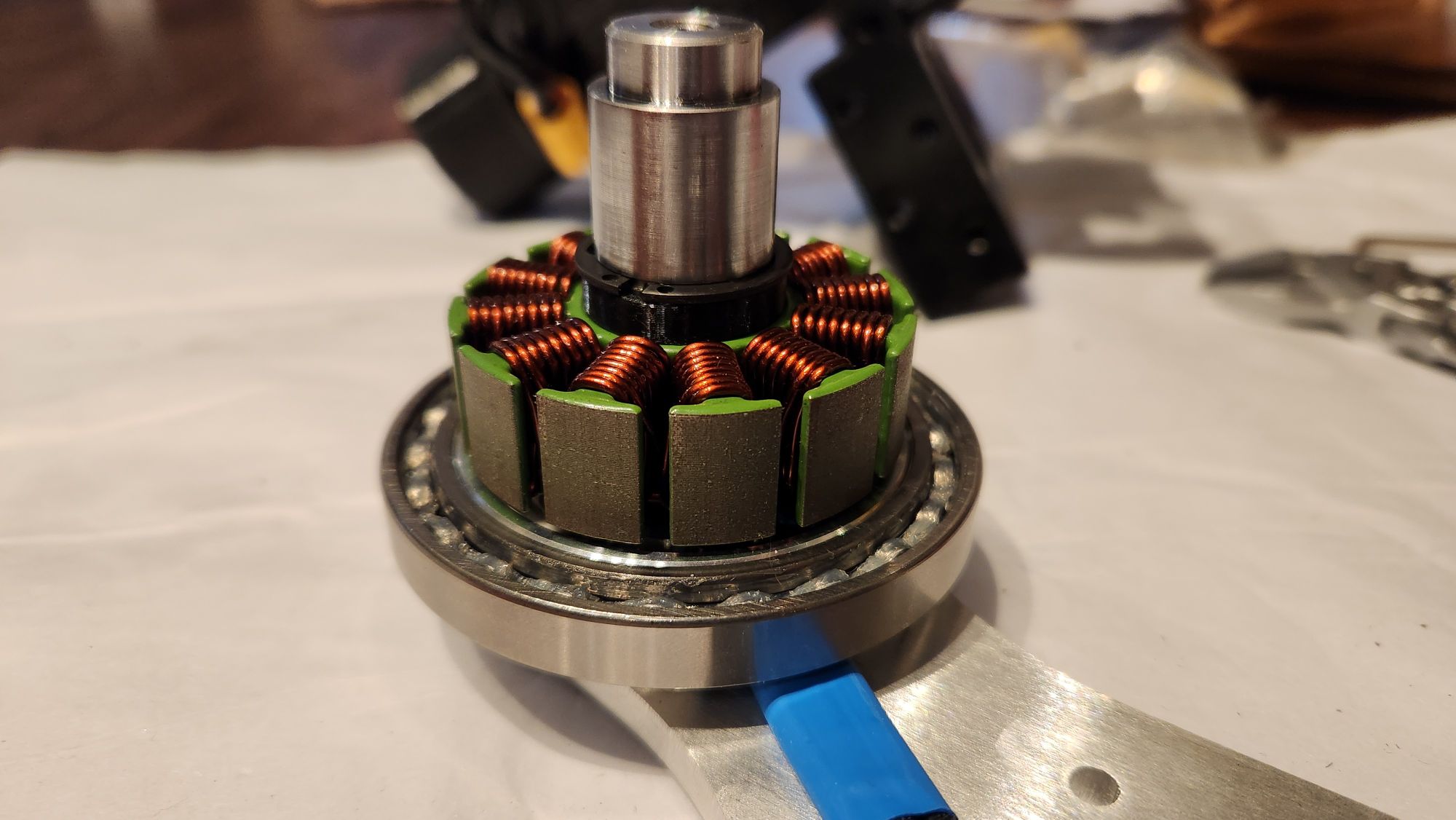

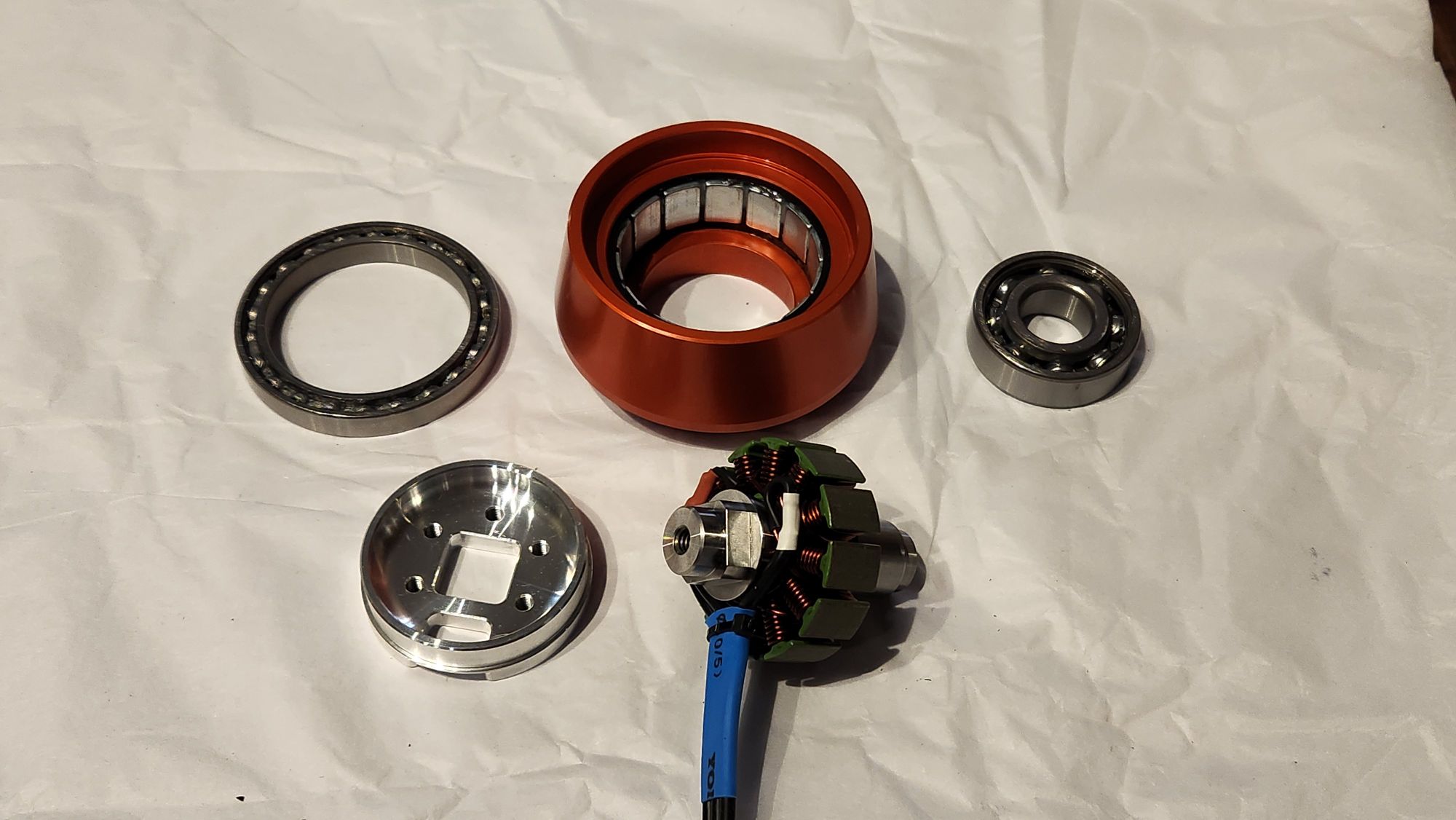

- Weapon Transmission: Custom hubmotor with axial clamp clutch

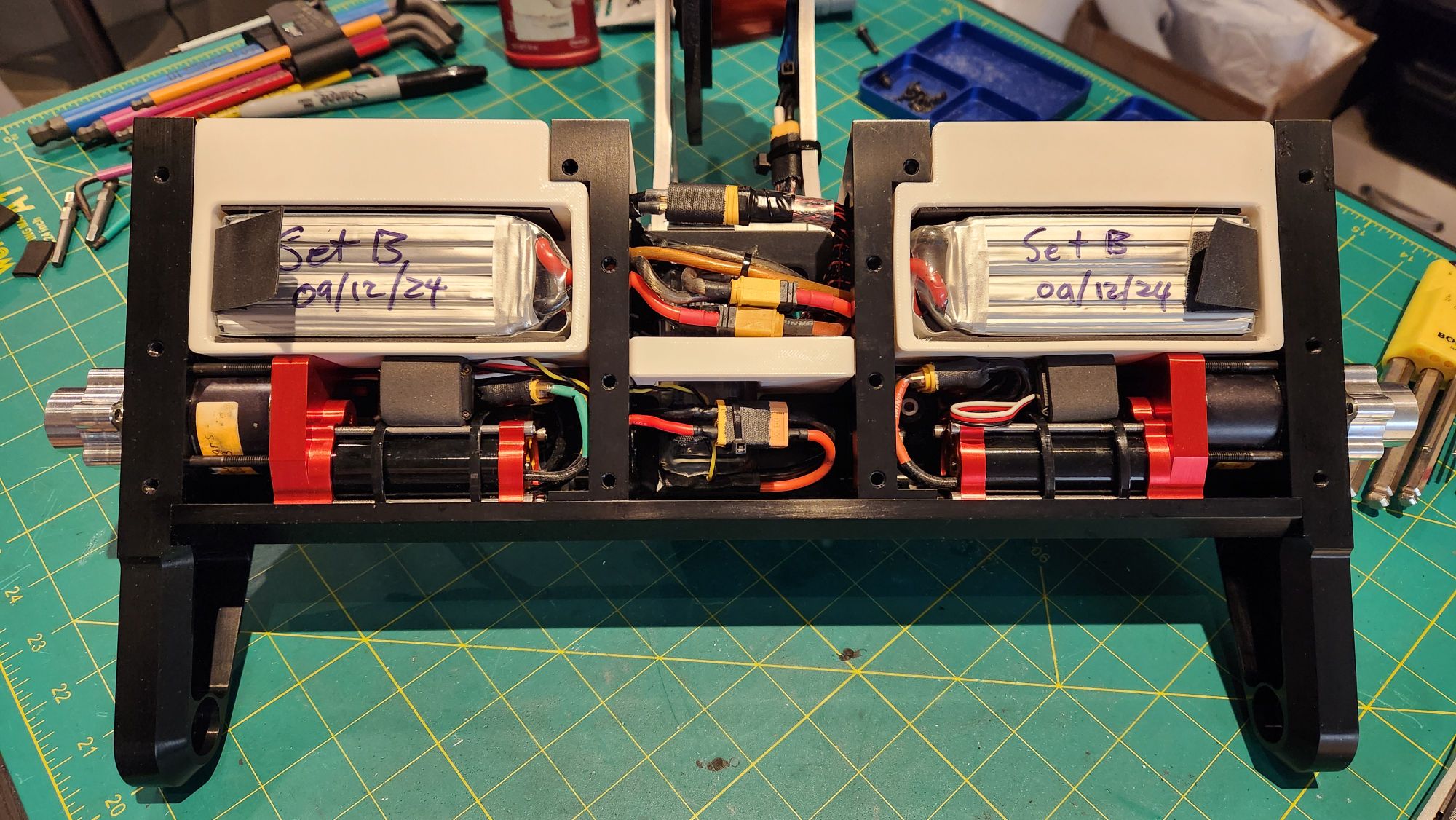

- Power: 2X 4s, 2600 mah lithium polymer batteries, series wiring

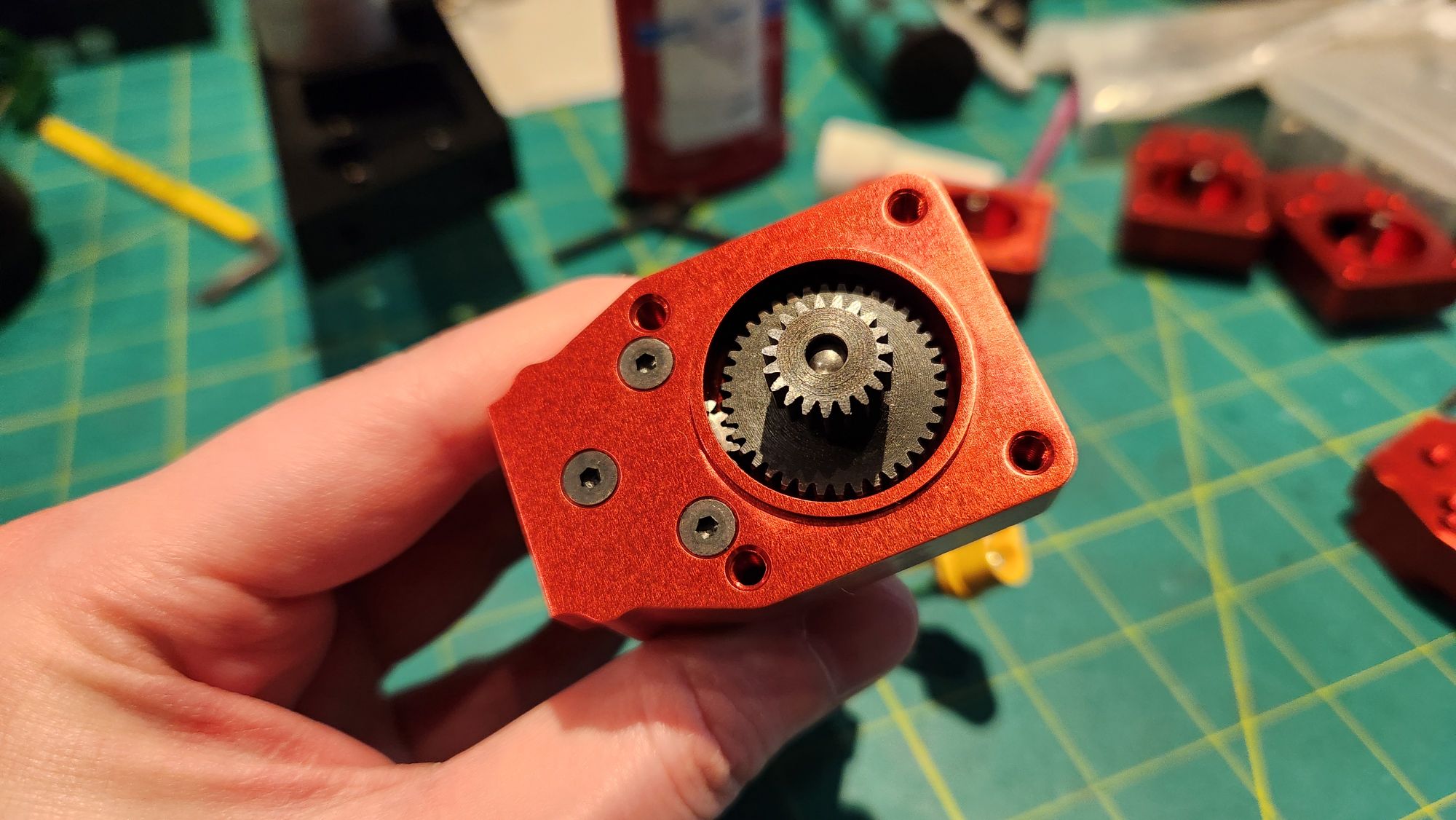

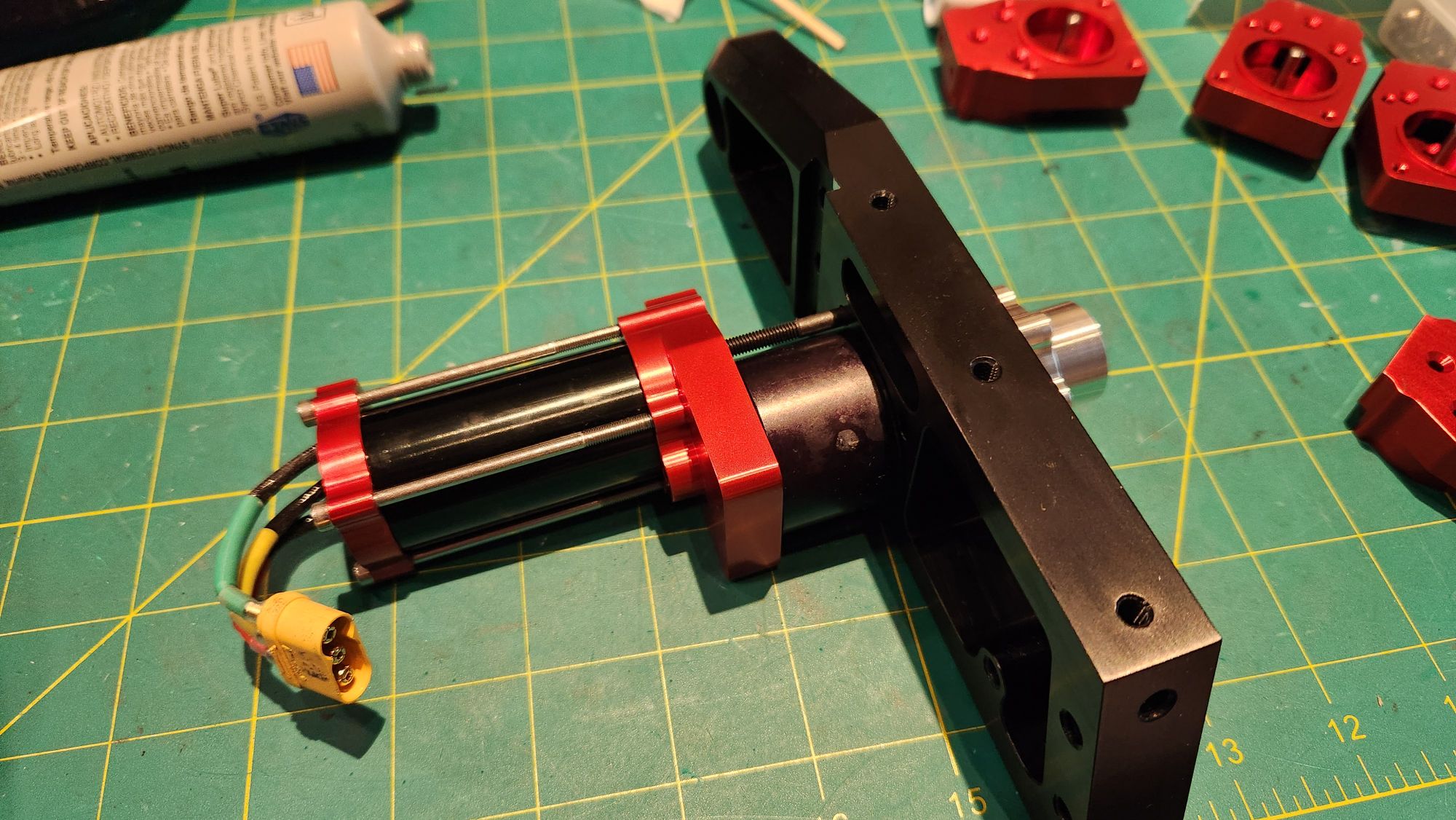

- Drive: Linatex-coated timing belts, custom brushless 22:1 gearmotors

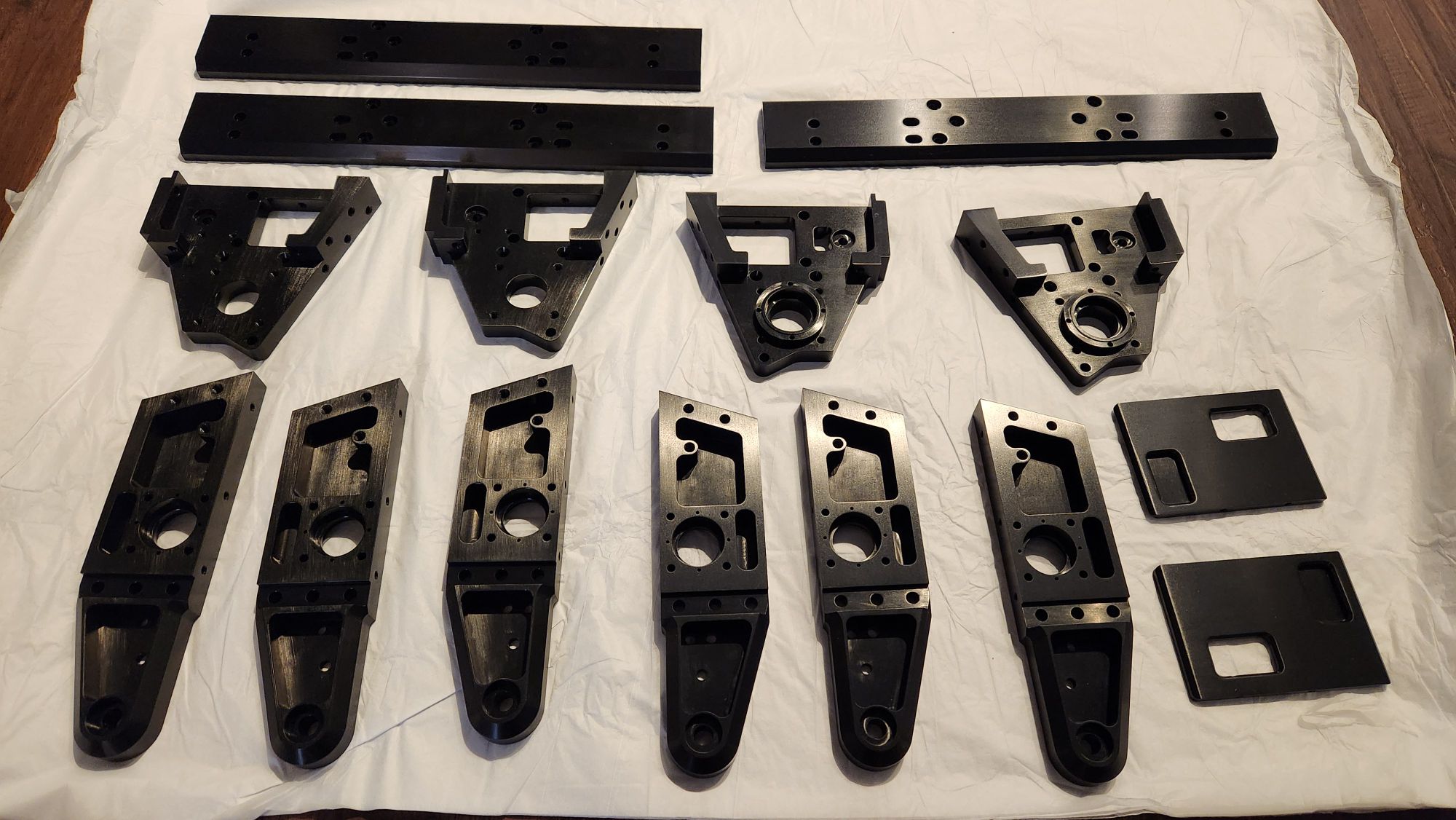

- Materials: steel, aluminum, carbon fiber, TPU
Sometimes called the “triple option of combat robotics”, MegatRON has the tools to dominate any opponent. Long forks or a wedge for basic control and an articulated “hammer saw” to puncture top armor or dual purpose as a vertical spinner. MegatRON and SawBlaze exist in symbiosis; each competition for one informs upgrades in the other resulting in a faster iteration cycle.

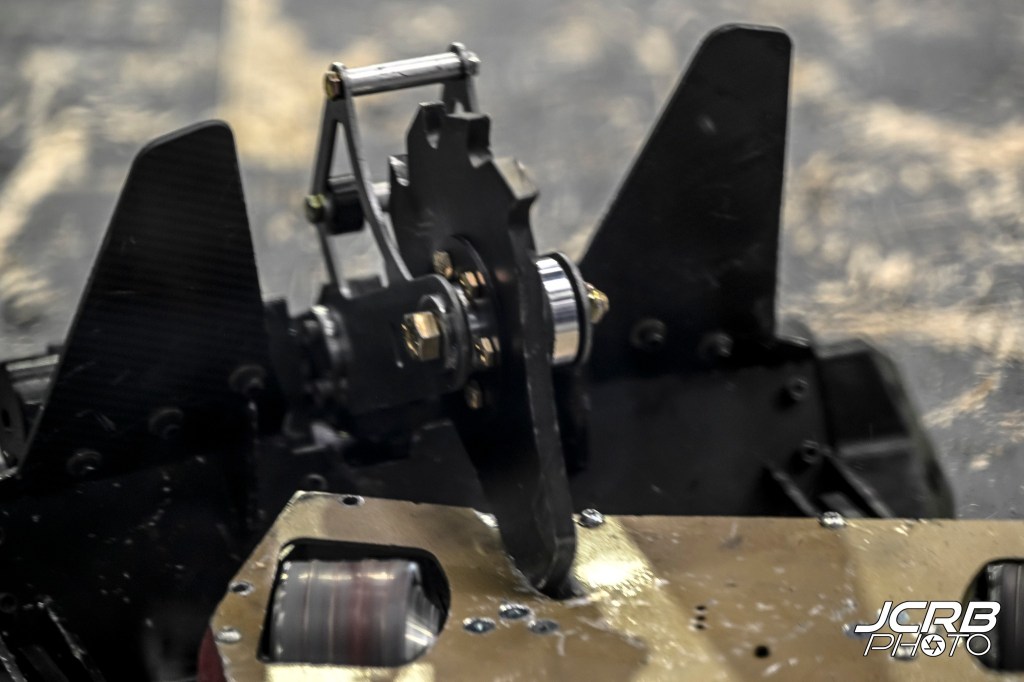

Recent design goals for MegatRON have been serviceability and reliability of the weapon system. Version 4 featured sliding tensioners in the frame and arm to accommodate for manufacturing inconsistencies in the v belts. The most noteworthy addition is the mechanical detent clutch nestled between the arm which protects it from shock and over torque conditions.
Version 5 debut in late 2024 with the goal of performance in mind. A faster, lighter, and more agile drive made from custom gearboxes paired with a new treaded drive gave MegatRON unparalleled speed and control. Its hubmotor weapon system freed internal space and weight for a counter-gyro system made from a steel drum spinning at 70k RPMs. The blade was made thinner for slicing and its lightness was compensated by a higher blade speed to match kinetic energy performance!
The name comes from the very first robot I built to compete with, RON (that is another story altogether). RON was a beetleweight robot so naturally the larger version is “mega” sized. Add in an extra “t” for flavor and you have a well known Decepticon!
Career accomplishments
- 2nd, Motorama (2015)
- 1st, Motorama (2017)
- 1st, Motorama (2018)
- 1st, Motorama (2020)
- 1st, NHRL (Jan, 2021)
- 3rd, NHRL (Jul, 2021)
- 1st, NHRL Finals 2021)
- 2nd, NHRL (April 2022)
- 3rd, NHRL Finals 2022)
- 1st, NHRL (March, 2023)
- 2nd, NHRL Finals (2023)
- 3rd, NHRL (April, 2024)
- 1st, NHRL Finals (2024)
Selected media
Watermarked photos credit to Jon Bennett of JCRB Photography.
